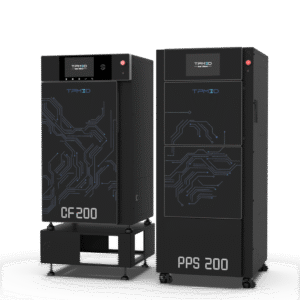

TPM3D CF200 & TPM3D PPS200
SLS 3D Printer

The TPM3D CF200 and PPS200 are SLS 3D printers designed for professional R&D use, providing precise, dust-free additive manufacturing in a compact footprint.

Specifications of TPM3D CF200

Laser : 30W Fiber Laser
Focus : F-θ Field Lens
Build Chamber Size (X×Y×Z) : 200×200×320 mm
Layer Height : 0.1 mm
Print Speed : 0.5-0.8 L/h*
Powder Supply Bin Volume : 15 L
Powder Supply and Recoater : Right Side Top Feed, Dual Side Recoating
Material : PA11, PA12, PA12 GF, PA12 CF, TPU
Virgin Powder Ratio : 20-40%
Powder Particle Diameter : 20-60 μm (Recommended)
Working Temperature : 18-28 °C
Humidity Requirements : 20-50% RH
N₂ Protection : Optional
Security Standard : CE
Dimensions (L×W×H) : 700×625×1350 mm
Weight : 130 kg
Power : 220V AC / 50Hz
Pedestal Dimensions (L×W×H) : 720×645×335 mm
Pedestal Weight : 16 kg

Specifications of TPM3D PPS200

Auto-Depowdering : Yes, via Rotating Basket
Basket Rotation Speed : 60-80 rpm
Auto-Sieving : Yes
Sieve Vibration Force : 55 kg
Auto Powder Mixing : Yes
Rotation Speed Mixer : 120 rpm
Mixer Volume : 16 L
Auto Powder Supply : Yes
Powder Supply Method : Automatically Supplied via Pipelines
Dust Suppression : Negative Pressure Dust Collection System
Safety Standard : CE
Operation Screen : 10″Touchscreen，1080P Resolution
Dimensions : 700×800×1685 mm
Weight : 160 kg
Power : 220V AC / 50Hz
Printers Supported : Numerous **

Brochure

Get the TPM3D S150HT​ SLS 3D Printer brochure now for comprehensive details and specifications

BROCHURE.PDF
2.00M

Talk to our Experts

Ready to elevate your additive manufacturing? Contact the Lodestar 3D team to discover how we can help you achieve that.

Email: support@lodestar3d.com

Address: No. 42, 12th Main, Block 4 Jayanagar, Bengaluru 560011

Contact us now!

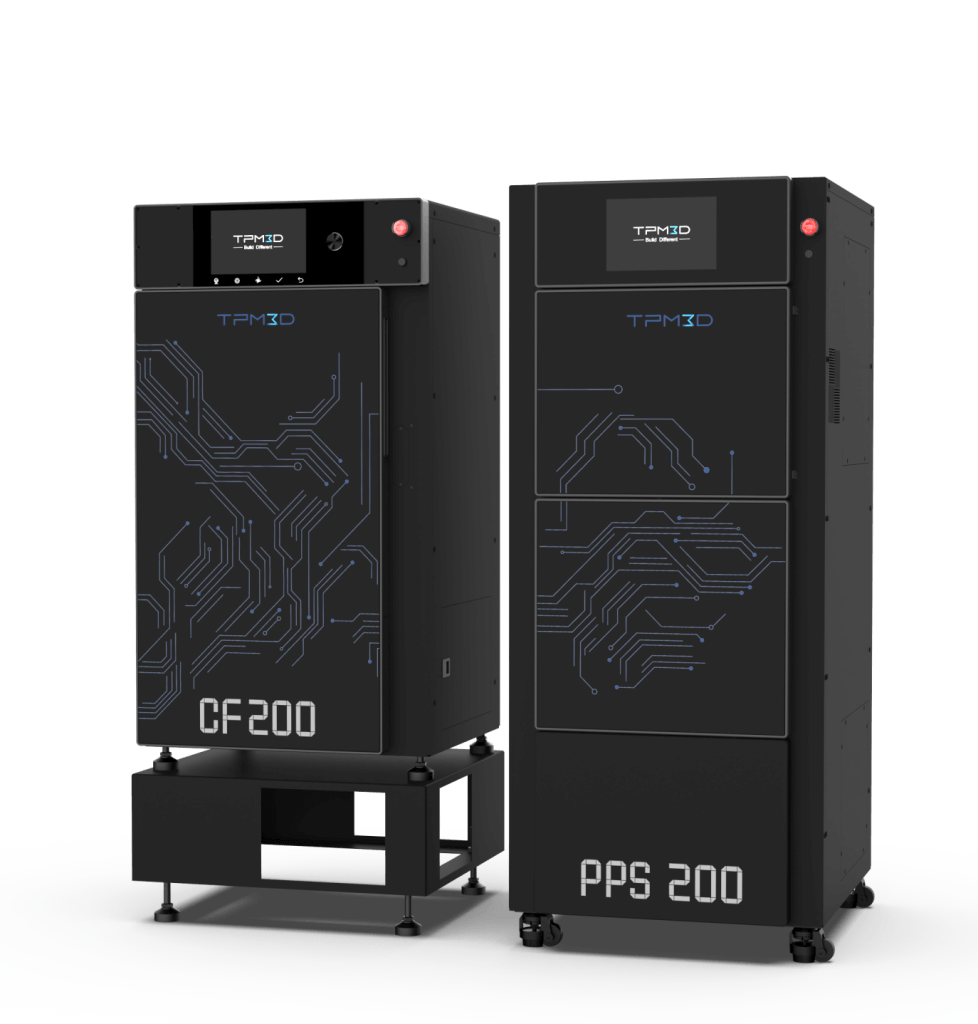

TPM3DCF200 and TPM3DPPS200
Small in form. Limitless in potential

This concise introduction to the core design and performance advantages of the TPM3D CF200 + PPS200 system. See how its compact footprint, intelligent operation, and closed-loop powder management work together to solve common SLS challenges—from large space demands to complicated workflows and dust-control issues.

Talk To Our Experts

+91 990-000-3300

TPM3D CF200 & TPM3D PPS200 SLS 3D Printer Features

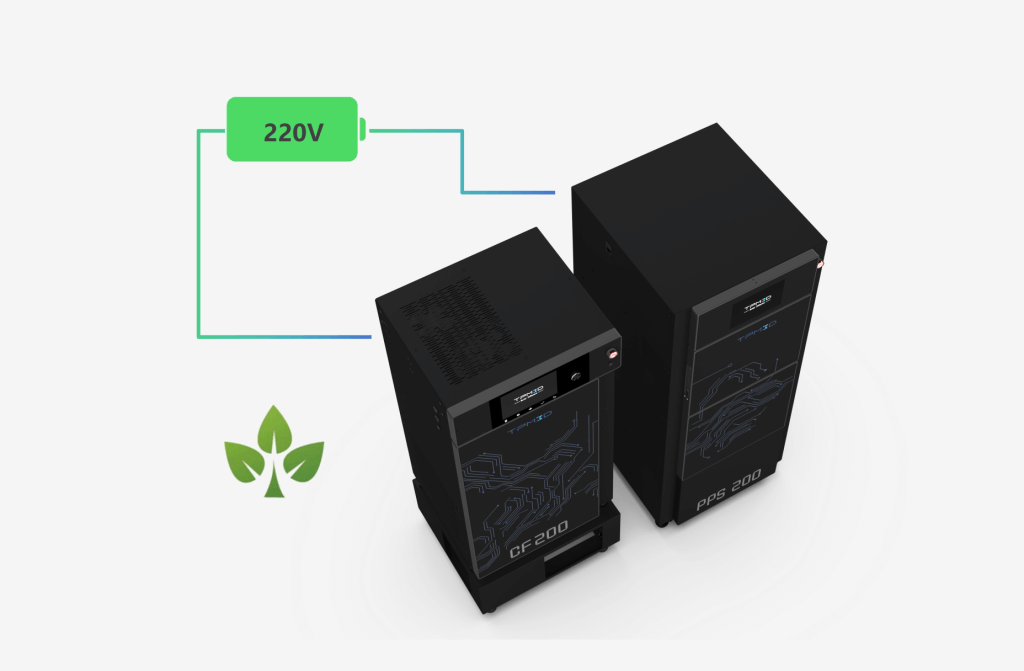

Key features of the TPM3D CF200 and PPS200 include a compact system footprint under 1 square meter for space efficiency, easy plug-and-play operation using standard 220V power, and a fully enclosed powder management system that ensures clean and safe printing workflows.

TPM3D CF200 & TPM3D PPS200 Compact Series Solution

  • Compact Design (<1 sqm total system)
  • Plug-and-Play (220V) & One-Click Start
  • Clean, Enclosed Workflow (PPS200)
Schedule A Call

+91 990-000-3300

TPM3D CF200 SLS 3D Printer FAQ's

1. What is the TPM3D CF200 SLS 3D Printer used for?

The TPM3D CF200 is used for professional SLS 3D printing in R&D labs, offices, prototyping environments, and small-batch production workflows where nylon and polymer parts are required.

The TPM3D CF200 has a build chamber size of 200 x 200 x 320 mm, making it suitable for compact SLS printing applications with professional-grade output.

The TPM3D CF200 supports materials such as PA11, PA12, PA12 GF, PA12 CF, and TPU, making it suitable for functional nylon parts, flexible parts, and reinforced polymer applications.

The TPM3D PPS200 is a powder processing system that supports auto-depowdering, auto-sieving, powder mixing, auto powder supply, and dust suppression for a cleaner and more efficient SLS workflow.

This system offers a compact footprint of less than 1 sq. m, standard 220V plug-and-print operation, enclosed powder management, one-click start, and a cleaner workflow suitable for labs and office environments.
