Spectra-ebm-metal-3d-printer

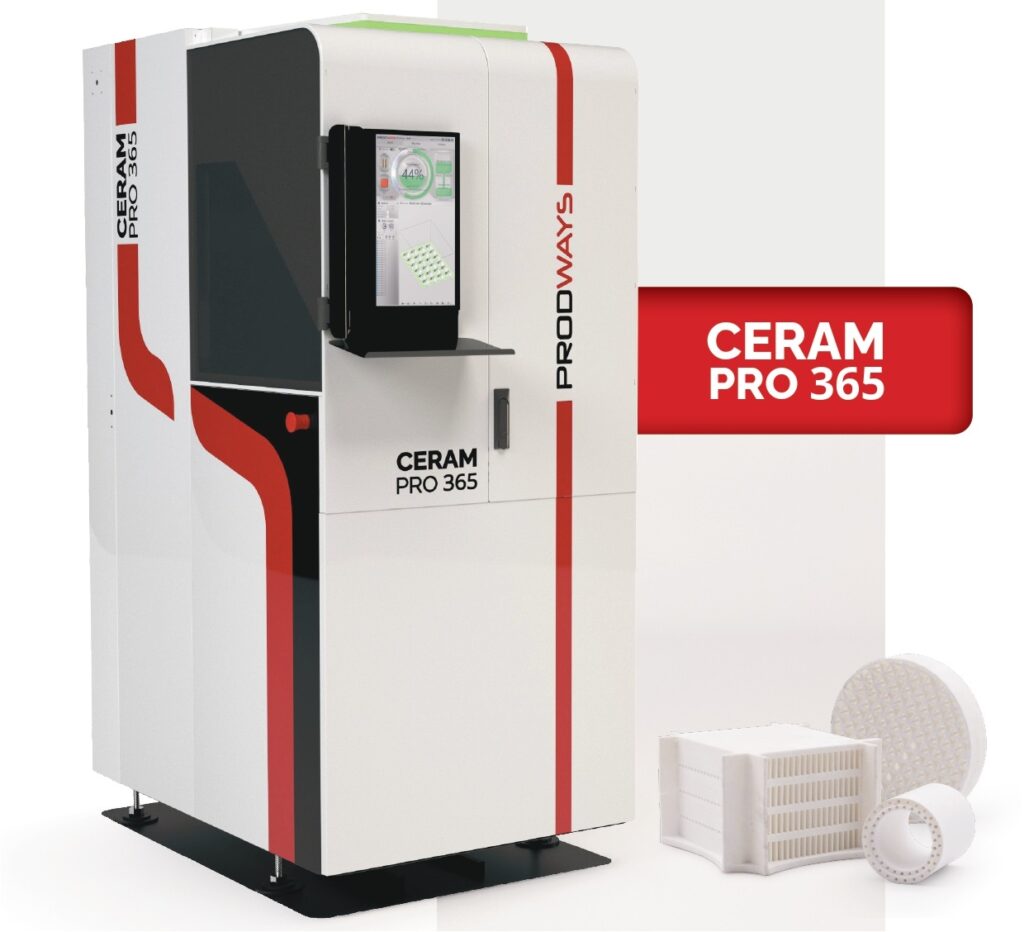

Ceram PRO 365

Prodways product
User Friendly Interface & Workflow : Intuitive dedicated software and a touchscreen interface for user-friendly operation.

Specifications

Applications : Investment casting related applications / Technical ceramics / Open for R&D*
Technology : UV-LED DLP, 365 nm wavelength (385 and 405 nm version on demand)
Light Power : 130 mW / cm²
Materials : Qualified with Silica and Alumina slurries from Sintx
Max. Build envelope size (LxWxH) : 264 x 328 x 350 mm 10.3 x 12.9 x 13.7 inches
Native pixel size (X,Y) : 31 μm (0.0016 inches)
Layer thickness* : 50 – 175 μm 0.001 to 0.006 inches
Platform type : Perforated metal platform
Build platform (LxW) : From 66 x 41 mm to 264 x 328 mm
Vat build height : Up to 350 mm - Starts as low as 500 mL initial fill
Printer size (LxWxH) : 855 x 1100 x 1780 mm 33.7 x 43.3 x 70.1 inches
Weight : 510 Kg 1125 lbs.
Power requirements : 210 – 240 VAC, 8-12A, 50/60 Hz

Brochure

Get the Prodways product - Ceram PRO 365 3D Printer brochure now for comprehensive details and specifications

BROCHURE.PDF
2.00M

Talk to our Experts

Ready to elevate your additive manufacturing? Contact the Lodestar 3D team to discover how we can help you achieve that.

support@lodestar3d.com

No. 42, 12th Main, Block 4 Jayanagar, Bengaluru 560011

Contact us now!

Ceram PRO 365

CERAMIC APPLICATIONS MOVINGLight® Technology Liquid Resin 3D Printers
Talk To Our Experts

+91 990-000-3300

Ceramic 3D Printers

Ceram PRO 365 Features :

  • High Resolution & LED Power
  • Efficient Production Speed
  • Modular TOP-DOWN Build Platform
  • AvailabiliIty of Open Parameters
