Industrial 3D Printers
Ask our Experts

LM-M100D

Dental LM-M100D Metal 3D Printer

Specifications

Dimension : 700X700X1300(mm)
Build Volume : Φ120*100mm/Φ100*80mm(diameter*height)
Laser Power : 300W
Layer Thickness : 20-50μm
Scanning speed : 7m/s
Powder Feeding Method : Parallel cylinder powder feeding
Supported interface type : Ethernet, USB
Control Software : Tianhong Customization
Data processing Software : Magics, Manage (provided by customers)
­Applicable Material : Titanium alloy, cobalt- chromium alloy, Stainless steel
Weight : 180 kg

Brochure

Get the LM-M100D 3D Printer​ brochure now for comprehensive details and specifications

BROCHURE.PDF
2.00M

Talk to our Experts

Ready to elevate your additive manufacturing? Contact the Lodestar 3D team to discover how we can help you achieve that.

support@lodestar3d.com

No. 42, 12th Main, Block 4 Jayanagar, Bengaluru 560011

Contact us now!

LM-M100D

The Dental revolution on the desktop opens a new chapter of customization
Talk To Our Experts

+91 990-000-3300

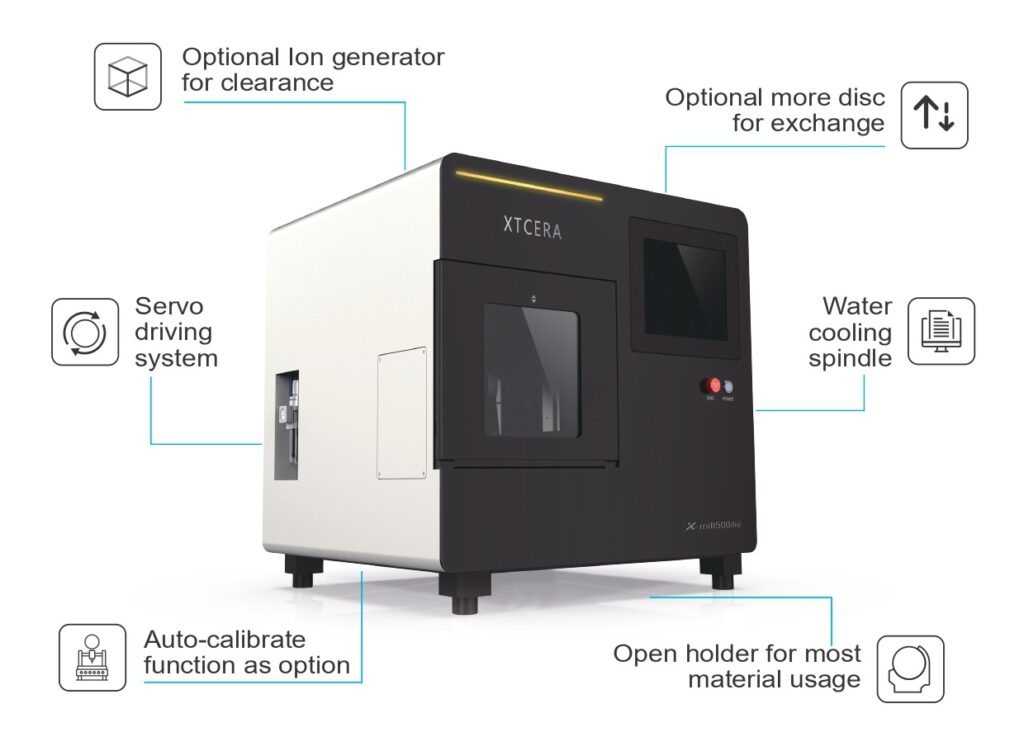

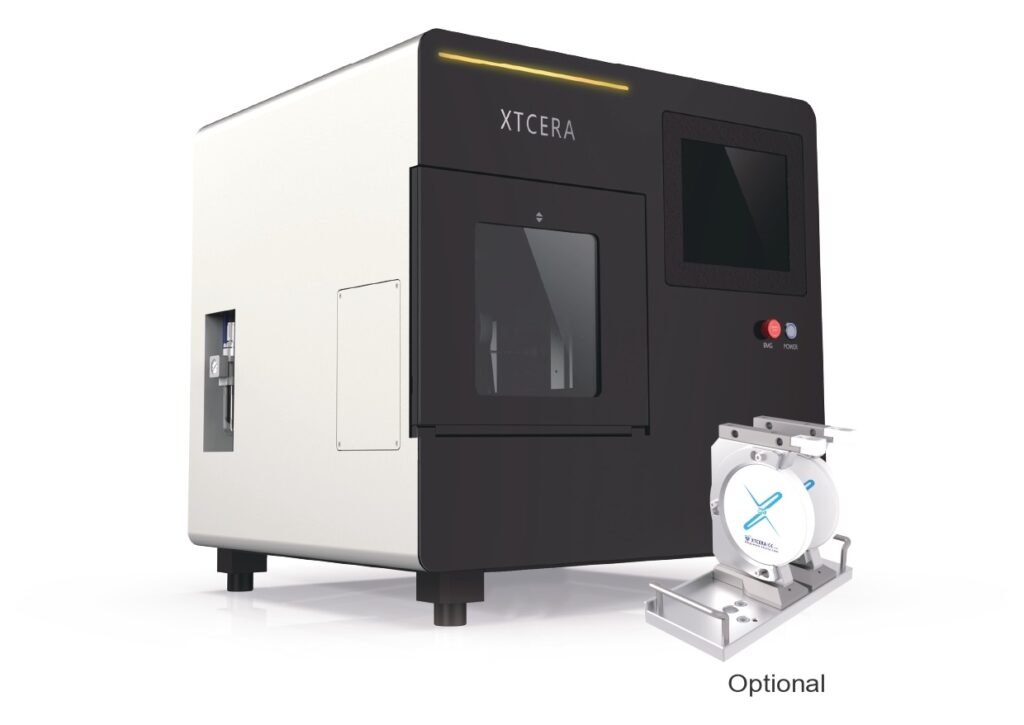

X-mill 500 Pro 3D Printer Features & Advantages:
  • lnput voltage : AC 220V
  • Spindle power : 1.8kw
  • Axis quantity : 5
  • Milling range: XYZ: 110/160/80mm A :±30° B : 360°
  • Repeated positioning accuracy : 3μm
  • Milling mode : Dry milling
  • Air supply pressure : ≥0.6Mpa
  • Bur capacity : 10
  • Tool change mode : Automatic
  • Spindle cooling : Water cooling
  • Bur changing : Automatic
  • ADC : Manual（option）
  • Millable Case Type : Crown&bridge, Inlay&onlay, Veneer, Abutment crown, Splint&retainer, Removable Denture
  • Milling time : Zirconia: Zirconia crown: 8mins, Wax: 3mins, PMMA: 10mins, PEEK: 10mins, Soft metal: 10mins
